Xenon - 54Xe: properties of free atoms

Xenon atoms have 54 electrons and the shell structure is  2.8.18.18.8.

The ground state electron configuration of ground state gaseous neutral xenon is  [Kr].4d10.5s2.5p6 and the term symbol is  1S0.

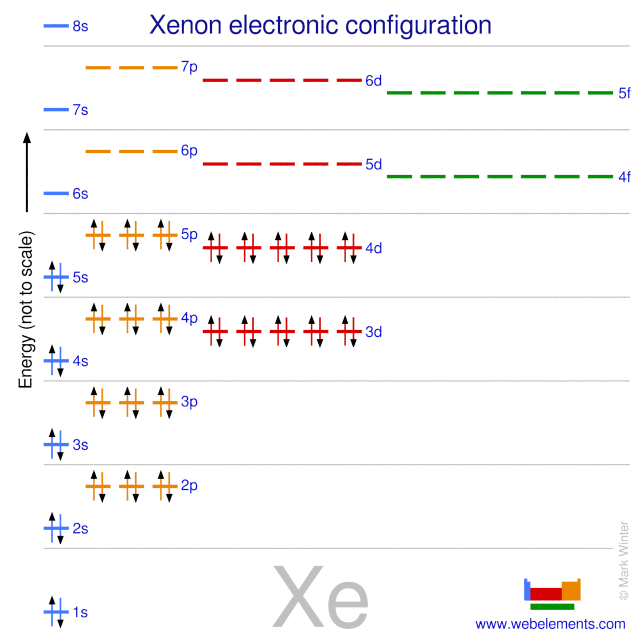

Kossel shell structure of xenon
Schematic electronic configuration of xenon.

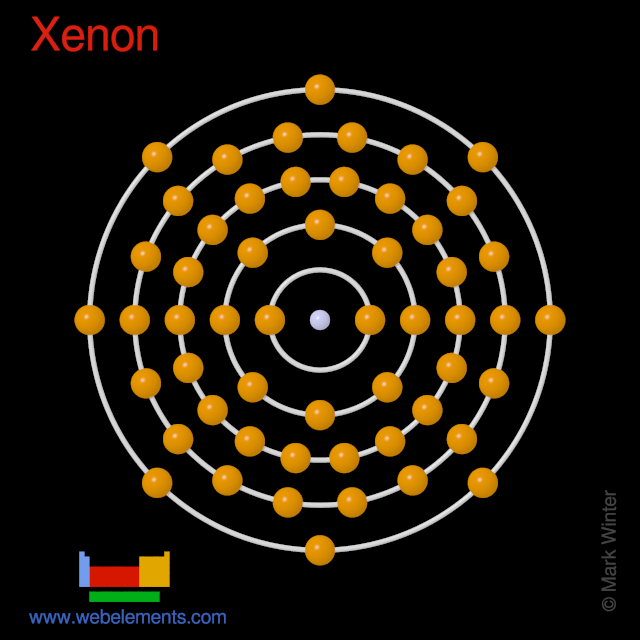

Kossel shell structure of xenon
The Kossel shell structure of xenon.

Atomic spectrum



A representation of the atomic spectrum of xenon.

Ionisation Energies and electron affinity

The electron affinity of xenon is 0 kJ mol‑1. The ionisation energies of xenon are given below.

Ionisation energies of xenon
Ionisation energy number Enthalpy / kJ mol‑1
1st1170.35
2nd2023.8
3rd2996
4th4072
5th5220
6th6436
7th8838
8th10230
9th17350
10th19490
11th22100
12th24600 (calculated)
13th27100
14th30300
15th33100
16th36100
17th39000
18th41900
19th53000
20th56200
21st59400

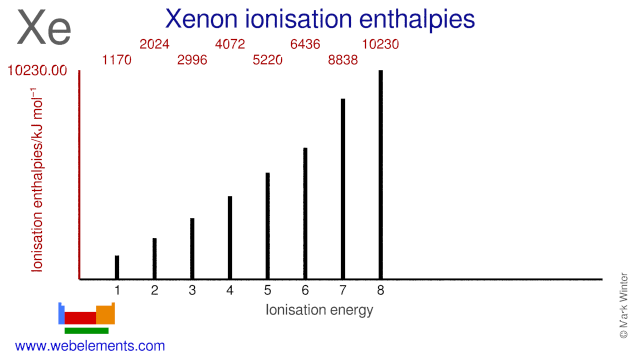

Ionisation energies of xenon
Ionisation energies of xenon.

Effective Nuclear Charges

The following are "Clementi-Raimondi" effective nuclear charges, Zeff. Follow the hyperlinks for more details and for graphs in various formats.

Effective nuclear charges for xenon
1s52.92
2s39.80 2p49.83
3s35.58 3p35.67 3d39.95
4s26.17 4p24.96 4d21.89 4f(no data)
5s14.22 5p12.42 5d(no data)
6s(no data) 6p(no data)
7s

References

These effective nuclear charges, Zeff, are adapted from the following references:

  1. E. Clementi and D.L.Raimondi, J. Chem. Phys. 1963, 38, 2686.
  2. E. Clementi, D.L.Raimondi, and W.P. Reinhardt, J. Chem. Phys. 1967, 47, 1300.

Electron binding energies

Electron binding energies for xenon. All values of electron binding energies are given in eV. The binding energies are quoted relative to the vacuum level for rare gases and H2, N2, O2, F2, and Cl2 molecules; relative to the Fermi level for metals; and relative to the top of the valence band for semiconductors.
Label Orbital eV [literature reference]
K 1s34561 [1]
L I2s5453 [1]
L II2p1/25107 [1]
L III2p3/24786 [1]
M I3s1148.7 [2]
M II3p1/21002.1 [2]
M III3p3/2940.6 [2]
M IV3d3/2689 [2]
M V3d5/2676.4 [2]
N I4s213.2 [2]
N II4p1/2146.7 [1]
N III4p3/2145.5 [2]
N IV4d3/269.5 [2]
N V4d5/267.5 [2]
N VI4f5/2 -
N VII4f7/2 -
O I5s23.3 [2]
O II5p1/213.4 [2]
O III5p3/212.1 [2]

Notes

I am grateful to Gwyn Williams (Jefferson Laboratory, Virginia, USA) who provided the electron binding energy data. The data are adapted from references 1-3. They are tabulated elsewhere on the WWW (reference 4) and in paper form (reference 5).

References

  1. J. A. Bearden and A. F. Burr, "Reevaluation of X-Ray Atomic Energy Levels," Rev. Mod. Phys., 1967, 39, 125.
  2. M. Cardona and L. Ley, Eds., Photoemission in Solids I: General Principles (Springer-Verlag, Berlin) with additional corrections, 1978.
  3. Gwyn Williams WWW table of values
  4. D.R. Lide, (Ed.) in Chemical Rubber Company handbook of chemistry and physics, CRC Press, Boca Raton, Florida, USA, 81st edition, 2000.
  5. J. C. Fuggle and N. Mårtensson, "Core-Level Binding Energies in Metals," J. Electron Spectrosc. Relat. Phenom., 1980, 21, 275.
