Palladium - ₄₆Pd: crystal structures

• Space group: Fm-3m
• Space group number: 225
• Structure: ccp (cubic close-packed)
• Cell parameters:
  • a: 389.07 pm
  • b: 389.07 pm
  • c: 389.07 pm
  • α: 90.000°
  • β: 90.000°
  • γ: 90.000°

You may view the structure of palladium:

• interactively (best, but the page will take longer to load) or
• non-interactively

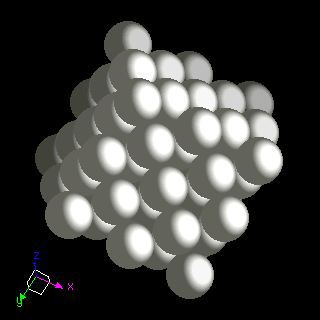

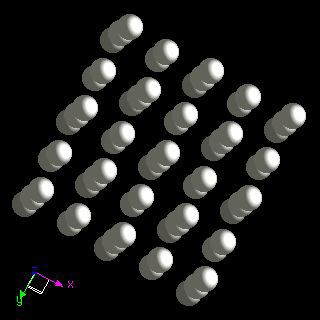

Palladium crystal structure image displayed using JSMol. Try rotating the picture. The JSMol logo at the bottom right of the image is a popup menu allowing furher tinteraction with the structure

References

C. N. Rao, and K. K. Rao, Can. J. Phys., 1964, 42, 1336.
