Titanium - ₂₂Ti: crystal structures

• Space group: P63/mmc
• Space group number: 194
• Structure: hcp (hexagonal close-packed)
• Cell parameters:
  • a: 295.08 pm
  • b: 295.08 pm
  • c: 468.55 pm
  • α: 90.000°
  • β: 90.000°
  • γ: 120.000°

You may view the structure of titanium:

• interactively (best, but the page will take longer to load) or
• non-interactively

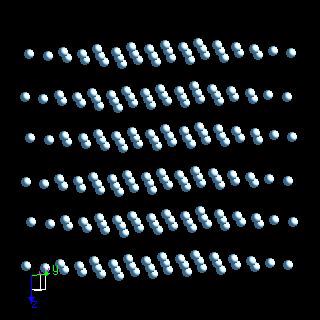

Titanium crystal structure image displayed using JSMol. Try rotating the picture. The JSMol logo at the bottom right of the image is a popup menu allowing furher tinteraction with the structure

References

R. R. Pawar, and V. T. Deshpande, Acta Crystallogr., 1968, 24A, 316.
