Vanadium - ₂₃V: crystal structures

• Space group: Im-3m
• Space group number: 229
• Structure: bcc (body-centred cubic)
• Cell parameters:
  • a: 303 pm
  • b: 303 pm
  • c: 303 pm
  • α: 90.000°
  • β: 90.000°
  • γ: 90.000°

You may view the structure of vanadium:

• interactively (best, but the page will take longer to load) or
• non-interactively

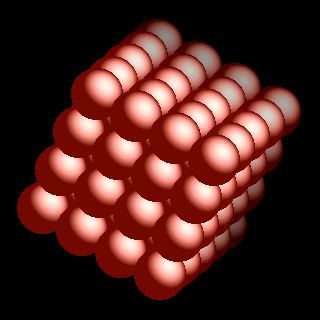

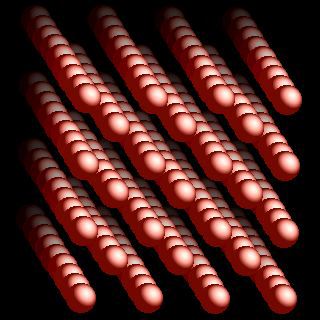

Vanadium crystal structure image displayed using JSMol. Try rotating the picture. The JSMol logo at the bottom right of the image is a popup menu allowing furher tinteraction with the structure

References

B. M. Vasyutinskiy, G. N. Kartmazov, Yu. M. Smirnov, and V. A. Finkel, Phys. Met. Metall., 1966, 21, 134.
