Ruthenium - ₄₄Ru: crystal structures

• Space group: P63/mmc
• Space group number: 194
• Structure: hcp (hexagonal close-packed)
• Cell parameters:
  • a: 270.59 pm
  • b: 270.59 pm
  • c: 428.15 pm
  • α: 90.000°
  • β: 90.000°
  • γ: 120.000°

You may view the structure of ruthenium:

• interactively (best, but the page will take longer to load) or
• non-interactively

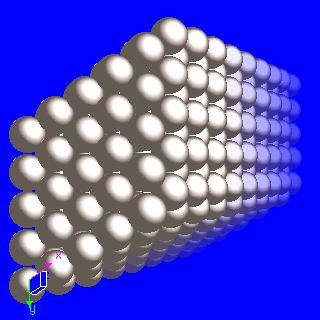

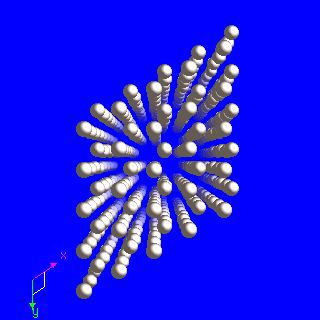

Ruthenium crystal structure image displayed using JSMol. Try rotating the picture. The JSMol logo at the bottom right of the image is a popup menu allowing furher tinteraction with the structure

References

V. A. Finkel, M. I. Palatnik, and G. P. Kovtun, Phys. Met. Metall., 1971, 32, 231.
