Niobium - ₄₁Nb: crystal structures

• Space group: Im-3m
• Space group number: 229
• Structure: bcc (body-centred cubic)
• Cell parameters:
  • a: 330.04 pm
  • b: 330.04 pm
  • c: 330.04 pm
  • α: 90.000°
  • β: 90.000°
  • γ: 90.000°

You may view the structure of niobium:

• interactively (best, but the page will take longer to load) or
• non-interactively

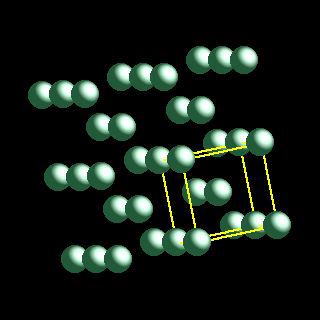

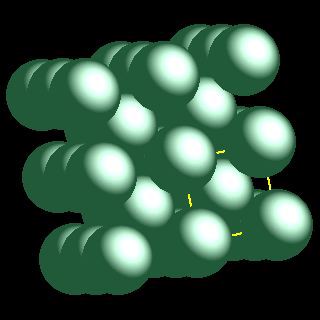

Niobium crystal structure image displayed using JSMol. Try rotating the picture. The JSMol logo at the bottom right of the image is a popup menu allowing furher tinteraction with the structure

References

M. E. Straumanis, and S. Zyszczynski, J. Appl. Crystallogr., 1970, 3, 1.
