Dinitrogen trioxide
- Formula: N2O3
- Hill system formula: N2O3
- CAS registry number: [10544-73-7]
- Formula weight: 76.012
- Class: oxide
- Colour: pale blue
- Appearance: unstable at room temperature
- Melting point: -102°C
- Boiling point: 3°C
- Density: 1400 kg m-3 (liquid, 2°C)
The following are some synonyms of dinitrogen trioxide:
- dinitrogen trioxide
- nitrogen (II, IV) oxide
- nitrogen oxide
- nitrogen trioxide
The oxidation number of nitrogen in dinitrogen trioxide is 3.
Synthesis
Not available

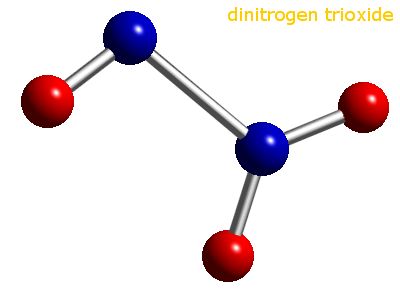

Solid state structure
- Geometry of nitrogen:
- Prototypical structure:
Element analysis
The table shows element percentages for N2O3 (dinitrogen trioxide).
| Element | % |
|---|---|
| N | 36.85 |
| O | 63.15 |
Isotope pattern for N2O3
The chart below shows the calculated isotope pattern for the formula N2O3 with the most intense ion set to 100%.
References
The data on these compounds pages are assembled and adapted from the primary literature and several other sources including the following.
- R.T. Sanderson in Chemical Periodicity, Reinhold, New York, USA, 1960.
- N.N. Greenwood and A. Earnshaw in Chemistry of the Elements, 2nd edition, Butterworth, UK, 1997.
- F.A. Cotton, G. Wilkinson, C.A. Murillo, and M. Bochmann, in Advanced Inorganic Chemistry, John Wiley & Sons, 1999.
- A.F. Trotman-Dickenson, (ed.) in Comprehensive Inorganic Chemistry, Pergamon, Oxford, UK, 1973.
- R.W.G. Wyckoff, in Crystal Structures, volume 1, Interscience, John Wiley & Sons, 1963.
- A.R.West in Basic solid state chemistry Chemistry, John Wiley & Sons, 1999.
- A.F. Wells in Structural inorganic chemistry, 4th edition, Oxford, UK, 1975.
- J.D.H. Donnay, (ed.) in Crystal data determinative tables, ACA monograph number 5, American Crystallographic Association, USA, 1963.
- D.R. Lide, (ed.) in Chemical Rubber Company handbook of chemistry and physics, CRC Press, Boca Raton, Florida, USA, 77th edition, 1996.
- J.W. Mellor in A comprehensive treatise on inorganic and theoretical chemistry, volumes 1-16, Longmans, London, UK, 1922-1937.
- J.E. Macintyre (ed.) in Dictionary of inorganic compounds, volumes 1-3, Chapman & Hall, London, UK, 1992.
