Caesium chloride
- Formula: CsCl
- Hill system formula: Cl1Cs1
- CAS registry number: [7647-17-8]
- Formula weight: 168.358
- Class: chloride
- Colour: white
- Appearance: crystalline solid
- Melting point: 646°C
- Boiling point: 1290°C; 1297°C
- Density: 3988 kg m-3
The following are some synonyms of caesium chloride:
- caesium chloride
- caesium(I) chloride
- cesium chloride
- cesium(I) chloride
The oxidation number of caesium in caesium chloride is 1.
Synthesis
One way to make caesium chloride is to react the hydroxide with hydrochloric acid. The resulting salt can then be purified by recrystallization.
CsOH(aq) + HCl(aq) → CsCl(aq) + H2O(l)
Caesium(I) chloride can also be made by the neutralization of caesium(I) carbonate with hydrochloric acid. The resulting salt can then be purified by recrystallization.
Cs2(CO3)(aq) + 2HCl(aq) → 2CsCl(aq) + H2O(l) + CO2(g)
While not a normal route of preparation because of the expense, caesium metal reacts vigorously with all the halogens to form sodium halides. So, it burns with chlorine, Cl2, to form caesium(I) chloride, CsCl.
2Cs(s) + Cl2(g) → 2CsCl(s)

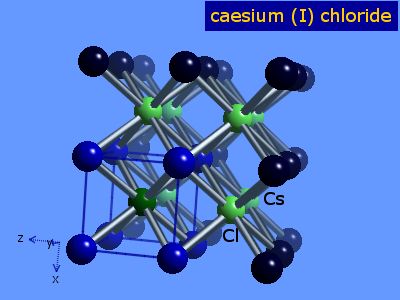

Solid state structure
- Geometry of caesium: 8 coordinate: cubic
- Prototypical structure: CsCl
Element analysis
The table shows element percentages for CsCl (caesium chloride).
| Element | % |
|---|---|
| Cl | 21.06 |
| Cs | 78.94 |
Isotope pattern for CsCl
The chart below shows the calculated isotope pattern for the formula CsCl with the most intense ion set to 100%.
